CM Series 7.5 to 22 kW

The Senator CM Series is our most advanced 4-in-1 compressed air station to date. Featuring a high-efficiency permanent magnet variable speed motor and direct-drive technology, it delivers superior energy savings, quieter operation and reduced maintenance compared with conventional belt-driven compressors. The innovative design also allows operating pressure to be electronically configured for either 8 bar or 10 bar applications via the controller and VSD, eliminating the need for pulley changes or other mechanical modifications.

Download Brochure

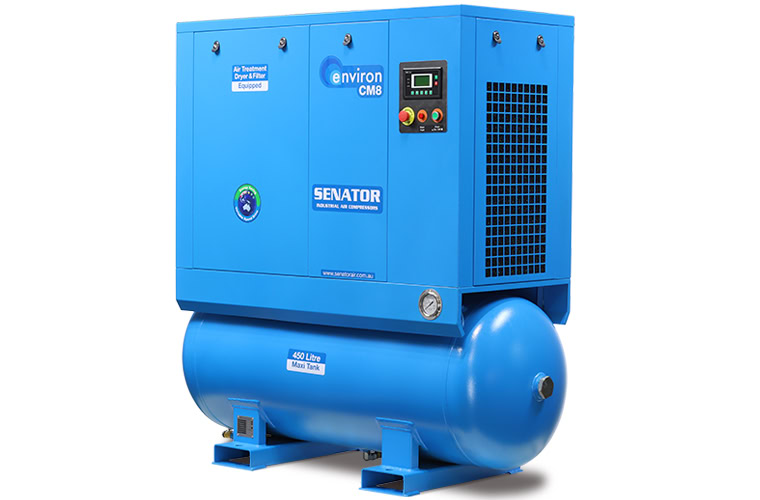

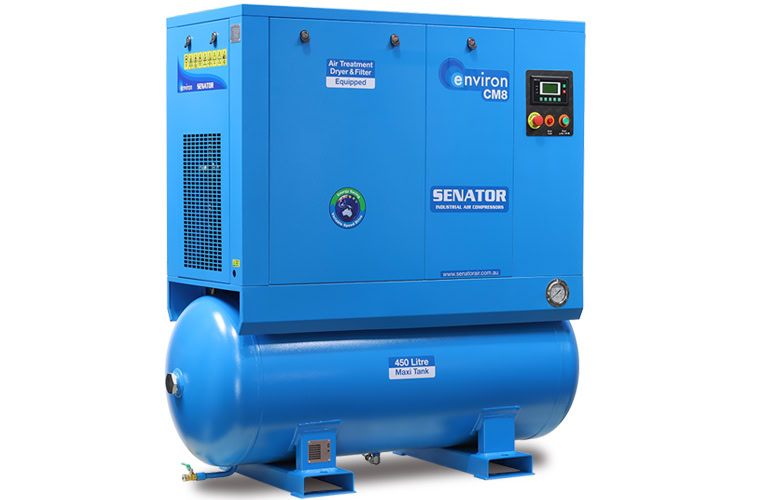

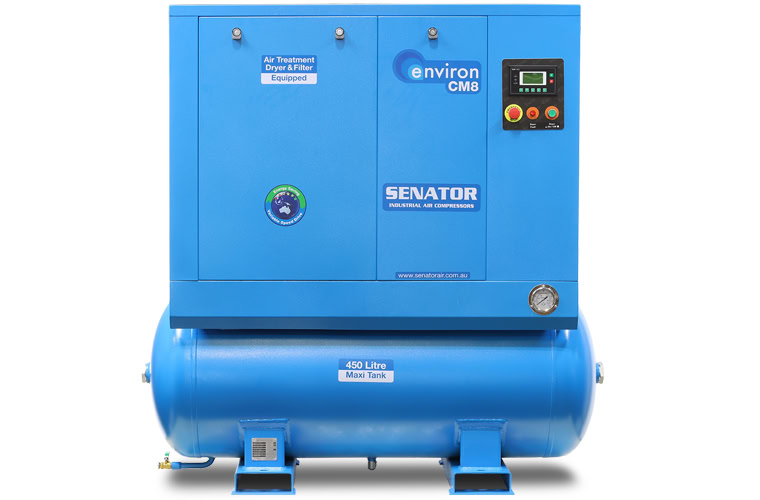

Senator CM8

Motor Power	7.5 kW (10 hp)
Free Air Delivery	0.44-1.10 m³/min (15-39 cfm)
Working Pressure	8 or 10 bar (116 or 145 psi)
Tank Volume	450 Litres
Noise Level @ 1 m	69 dB(A)
W x D x H Dim's	1,670 x 670 x 1,670 mm
Weight	407 kg
RRP (incl. GST):	$14,230.00
Product Code	SE CM8

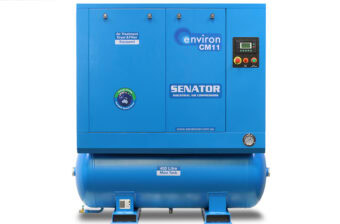

Senator CM11

Motor Power	11 kW (15 hp)
Free Air Delivery	0.92-1.78 m³/min (32-63 cfm)
Working Pressure	8 or 10 bar (116 or 145 psi)
Tank Volume	450 Litres
Noise Level @ 1 m	71 dB(A)
W x D x H Dim's	1,670 x 710 x 1,750 mm
Weight	458 kg
RRP (incl. GST):	$16,380.00
Product Code	SE CM11

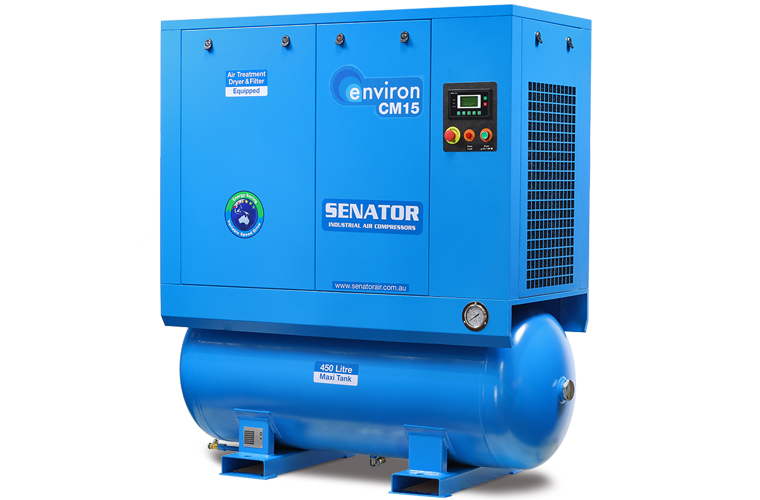

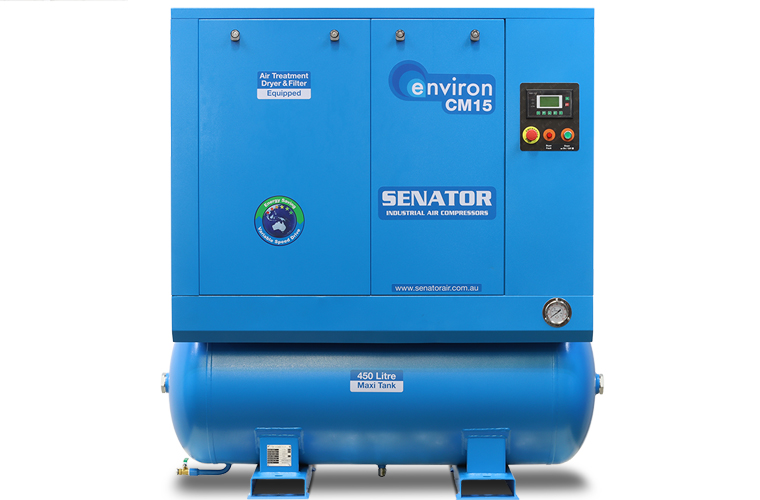

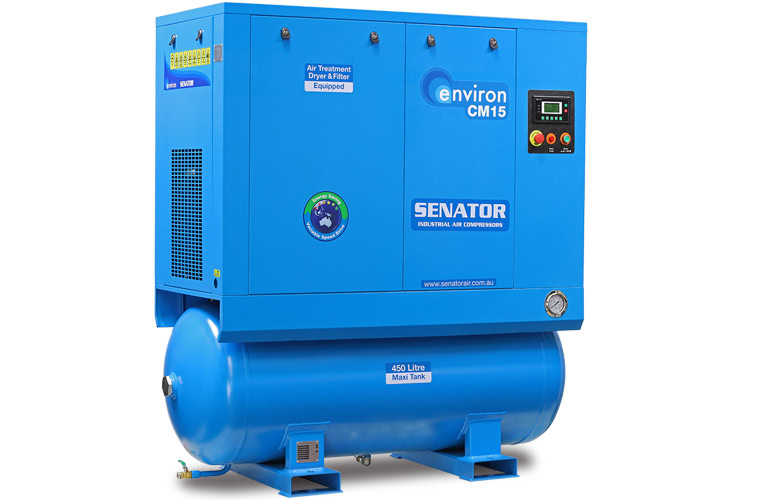

Senator CM15

Motor Power	15 kW (20 hp)
Free Air Delivery	1.28-2.45 m³/min (45-87 cfm)
Working Pressure	8 or 10 bar (116 or 145 psi)
Tank Volume	450 Litres
Noise Level @ 1 m	71 dB(A)
W x D x H Dim's	1,670 x 710 x 1,750 mm
Weight	478 kg
RRP (incl. GST):	$18,030.00
Product Code	SE CM15

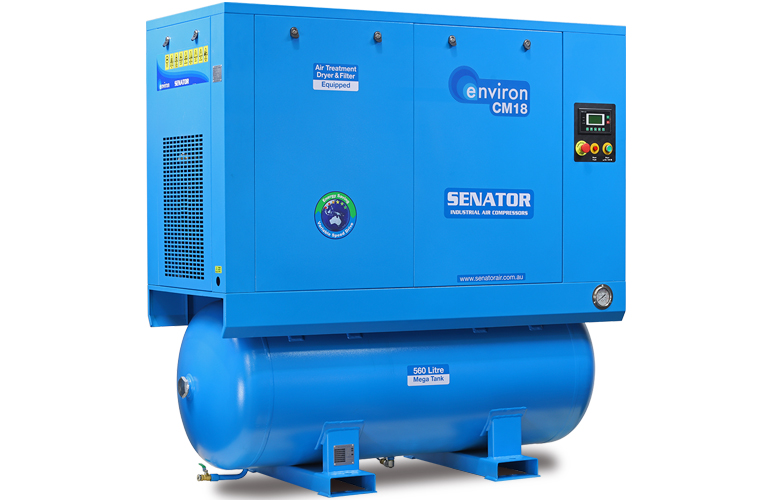

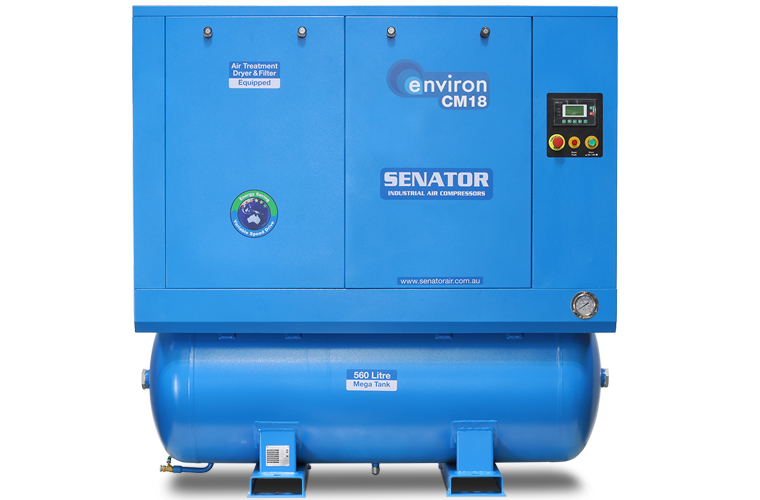

Senator CM18

Motor Power	18.5 kW (25 hp)
Free Air Delivery	1.45-2.85 m³/min (51-101 cfm)
Working Pressure	8 or 10 bar (116 or 145 psi)
Tank Volume	560 Litres
Noise Level @ 1 m	71 dB(A)
W x D x H Dim's	1,860 x 770 x 1,780 mm
Weight	615 kg
RRP (incl. GST):	$23,830.00
Product Code	SE CM18

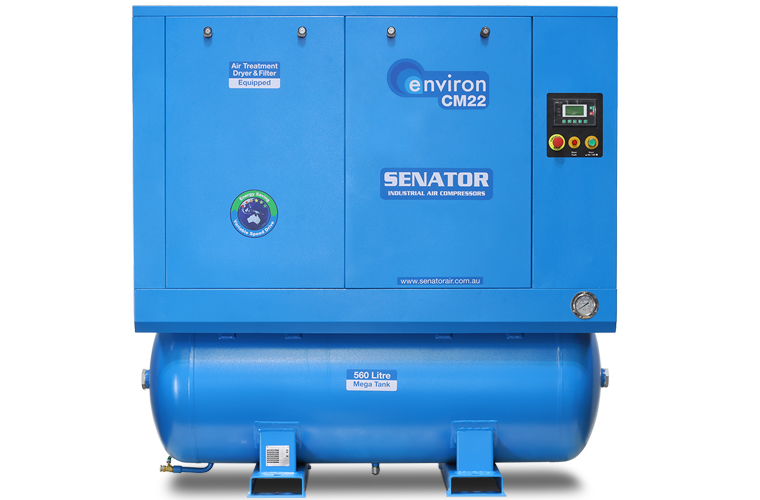

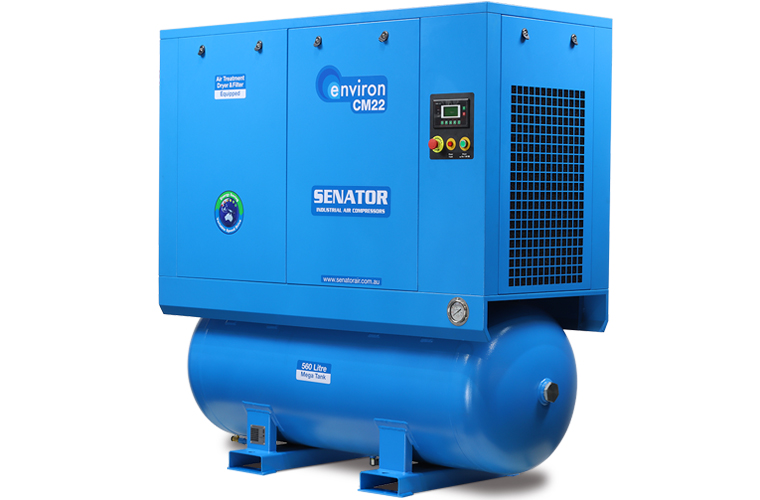

Senator CM22

Motor Power	22 kW (30 hp)
Free Air Delivery	1.92-3.68 m³/min (68-130 cfm)
Working Pressure	8 or 10 bar (116 or 145 psi)
Tank Volume	560 Litres
Noise Level @ 1 m	71 dB(A)
W x D x H Dim's	1,860 x 770 x 1,780 mm
Weight	635 kg
RRP (incl. GST):	$24,100.00
Product Code	SE CM22
