FS-Curtis NXHE Series 90 to 250 kW

The FS-Curtis NXHE Series delivers outstanding energy efficiency with a compact footprint through advanced two-stage rotary screw compression. Designed for applications from 7 to 13 bar, it is available in air-cooled or water-cooled configurations, with a choice of fixed-speed or permanent magnet variable speed drive models.

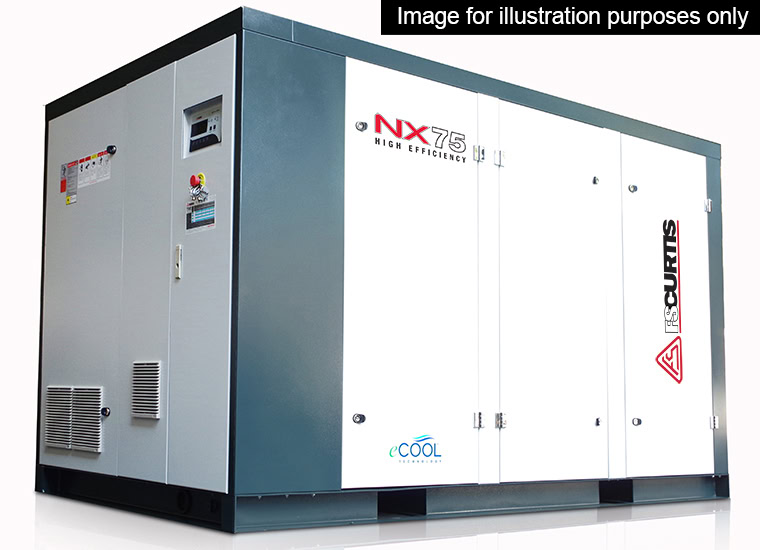

    FS-Curtis NXHE 90

    Motor Power 90 kW
    Free Air Delivery 18.6 m³/min (657 cfm)
    Working Pressure 8 bar (116 psi)
    Optional Pressures 7, 10 or 13 bar (101, 145 or 189 psi)
    Noise Level @ 1 m 74 dB(A)
    Air Outlet DN80
    Product Code FS NXHE90
    Product Code FS NXHE 90

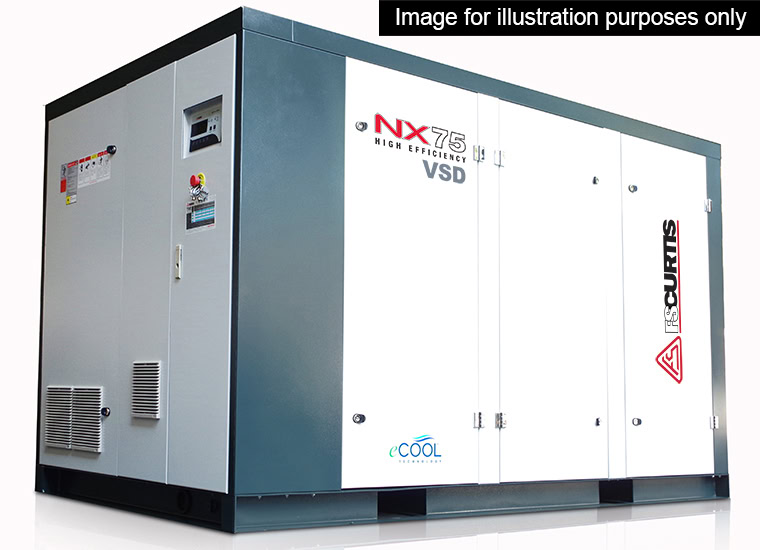

    FS-Curtis NXHEV 90

    Motor Power 90 kW
    Free Air Delivery 4.1 - 19.9 m³/min (146 - 703 cfm)
    Working Pressure 7 - 13 bar (101 - 189 psi)
    Noise Level @ 1 m 74 dB(A)
    Air Outlet DN80
    Product Code FS NXHEV90
    Product Code FS NXHEV 90

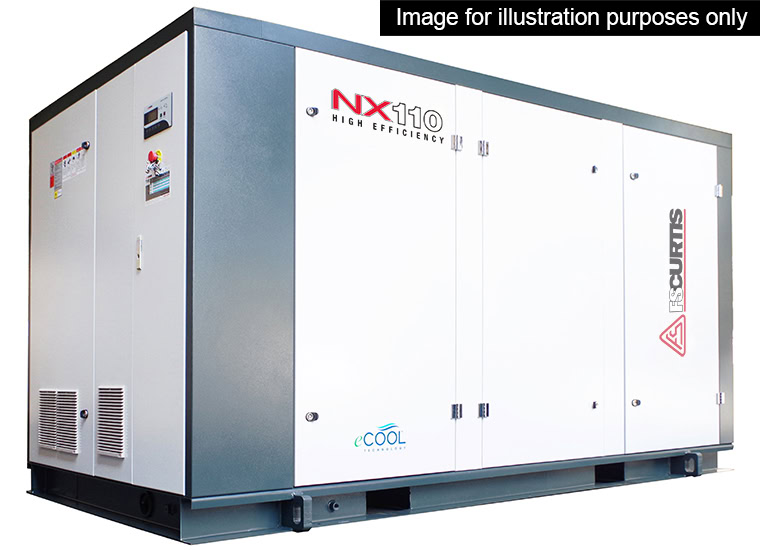

    FS-Curtis NXHE 110

    Motor Power 110 kW
    Free Air Delivery 22.3 m³/min (788 cfm)
    Working Pressure 8 bar (116 psi)
    Optional Pressures 7, 10 or 13 bar (101, 145 or 189 psi)
    Noise Level @ 1 m 75 dB(A)
    Air Outlet DN80
    Product Code FS NXHE110
    Product Code FS NXHE 110

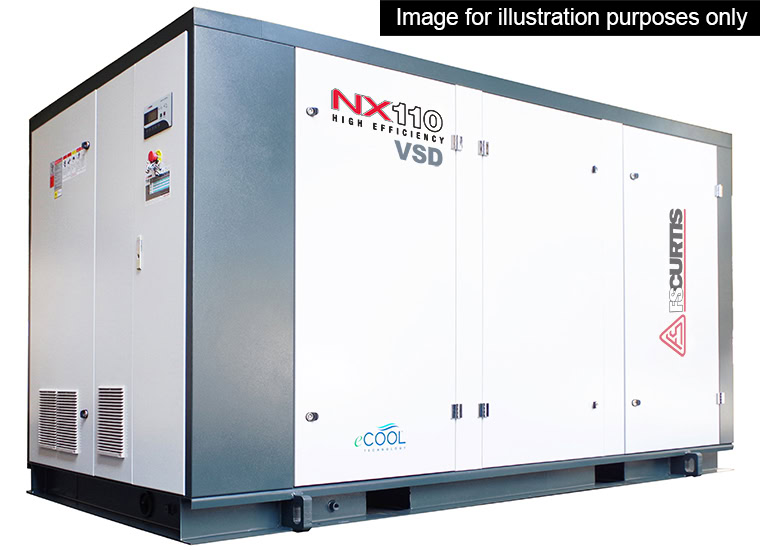

    FS-Curtis NXHEV 110

    Motor Power 110 kW
    Free Air Delivery 5.0 - 23.9 m³/min (178 - 844 cfm)
    Working Pressure 7 - 13 bar (101 - 189 psi)
    Noise Level @ 1 m 75 dB(A)
    Air Outlet DN80
    Product Code FS NXHEV110
    Product Code FS NXHEV 110

    FS-Curtis NXHE 132

    Motor Power 132 kW
    Free Air Delivery 27.1 m³/min (957 cfm)
    Working Pressure 8 bar (116 psi)
    Optional Pressures 7, 10 or 13 bar (101, 145 or 189 psi)
    Noise Level @ 1 m 76 dB(A)
    Air Outlet DN100
    Product Code FS NXHE132
    Product Code FS NXHE 132

    FS-Curtis NXHEV 132

    Motor Power 132 kW
    Free Air Delivery 6.2 - 29.0 m³/min (217 - 1,024 cfm)
    Working Pressure 7 - 13 bar (101 - 189 psi)
    Noise Level @ 1 m 76 dB(A)
    Air Outlet DN100
    Product Code FS NXHEV132
    Product Code FS NXHEV 132

    FS-Curtis NXHE 160

    Motor Power 160 kW
    Free Air Delivery 33.6 m³/min (1,187 cfm)
    Working Pressure 8 bar (116 psi)
    Optional Pressures 7, 10 or 13 bar (101, 145 or 189 psi)
    Noise Level @ 1 m 77 dB(A)
    Air Outlet DN100
    Product Code FS NXHE160
    Product Code FS NXHE 160

    FS-Curtis NXHEV 160

    Motor Power 160 kW
    Free Air Delivery 7.8 - 36.0 m³/min (275 - 1,271 cfm)
    Working Pressure 7 - 13 bar (101 - 189 psi)
    Noise Level @ 1 m 77 dB(A)
    Air Outlet DN100
    Product Code FS NXHEV160
    Product Code FS NXHEV 160

    FS-Curtis NXHE 200

    Motor Power 200 kW
    Free Air Delivery 42.0 m³/min (1,483 cfm)
    Working Pressure 8 bar (116 psi)
    Optional Pressures 7, 10 or 13 bar (101, 145 or 189 psi)
    Noise Level @ 1 m 78 dB(A)
    Air Outlet DN100
    Product Code FS NXHE200
    Product Code FS NXHE 200

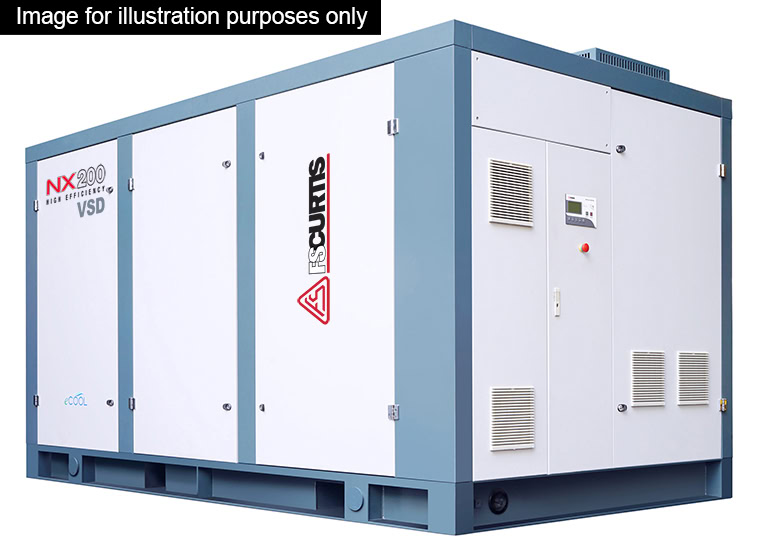

    FS-Curtis NXHEV 200

    Motor Power 200 kW
    Free Air Delivery 9.9 - 45.0 m³/min (350 - 1,589 cfm)
    Working Pressure 7 - 13 bar (101 - 189 psi)
    Noise Level @ 1 m 78 dB(A)
    Air Outlet DN100
    Product Code FS NXHEV200
    Product Code FS NXHEV 200

Enquire about this Product
