FS-Curtis NXT Series 90 to 250 kW

The FS-Curtis NXT Series combines high energy efficiency, a compact footprint and excellent value through two-stage rotary screw compression. Designed for 8 bar applications, it is available in air-cooled or water-cooled configurations, with a choice of fixed-speed or permanent magnet variable speed drive models.

    FS-Curtis NXT 90

    Motor Power 90 kW
    Free Air Delivery 17.5 m³/min (618 cfm)
    Working Pressure 8 bar (116 psi)
    Noise Level @ 1 m 74 dB(A)
    Air Outlet DN80
    Product Code FS NXT90
    Product Code FS NXT 90

    FS-Curtis NXTV 90

    Motor Power 90 kW
    Free Air Delivery 7.0 - 17.5 m³/min (247 - 618 cfm)
    Working Pressure 8 bar (116 psi)
    Noise Level @ 1 m 74 dB(A)
    Air Outlet DN80
    Product Code FS NXTV90
    Product Code FS NXTV 90

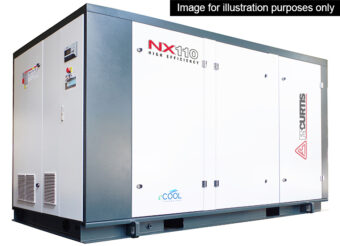

    FS-Curtis NXT 110

    Motor Power 110 kW
    Free Air Delivery 20.8 m³/min (735 cfm)
    Working Pressure 8 bar (116 psi)
    Noise Level @ 1 m 75 dB(A)
    Air Outlet DN80
    Product Code FS NXT110
    Product Code FS NXT 110

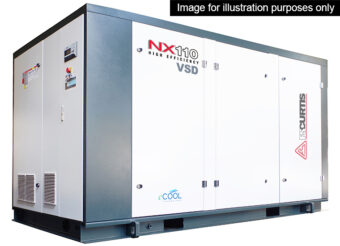

    FS-Curtis NXTV 110

    Motor Power 110 kW
    Free Air Delivery 8.3 - 20.8 m³/min (293 - 735 cfm)
    Working Pressure 8 bar (116 psi)
    Noise Level @ 1 m 75 dB(A)
    Air Outlet DN80
    Product Code FS NXTV110
    Product Code FS NXTV 110

    FS-Curtis NXT 132

    Motor Power 132 kW
    Free Air Delivery 25.5 m³/min (901 cfm)
    Working Pressure 8 bar (116 psi)
    Noise Level @ 1 m 76 dB(A)
    Air Outlet DN100
    Product Code FS NXT132
    Product Code FS NXT 132

    FS-Curtis NXTV 132

    Motor Power 132 kW
    Free Air Delivery 10.2 - 25.5 m³/min (360 - 901 cfm)
    Working Pressure 8 bar (116 psi)
    Noise Level @ 1 m 76 dB(A)
    Air Outlet DN100
    Product Code FS NXTV132
    Product Code FS NXTV 132

    FS-Curtis NXT 160

    Motor Power 160 kW
    Free Air Delivery 31.0 m³/min (1,095 cfm)
    Working Pressure 8 bar (116 psi)
    Noise Level @ 1 m 77 dB(A)
    Air Outlet DN100
    Product Code FS NXT160
    Product Code FS NXT 160

    FS-Curtis NXTV 160

    Motor Power 160 kW
    Free Air Delivery 12.4 - 31.0 m³/min (438 - 1,095 cfm)
    Working Pressure 8 bar (116 psi)
    Noise Level @ 1 m 77 dB(A)
    Air Outlet DN100
    Product Code FS NXTV160
    Product Code FS NXTV 160

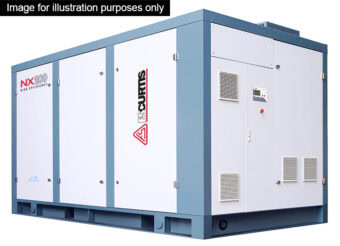

    FS-Curtis NXT 200

    Motor Power 200 kW
    Free Air Delivery 41.0 m³/min (1,448 cfm)
    Working Pressure 8 bar (116 psi)
    Noise Level @ 1 m 78 dB(A)
    Air Outlet DN100
    Product Code FS NXT200
    Product Code FS NXT 200

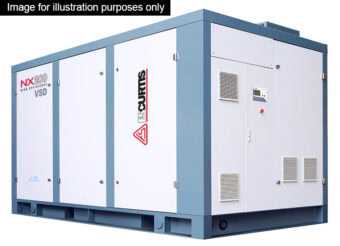

    FS-Curtis NXTV 200

    Motor Power 200 kW
    Free Air Delivery 16.4 - 41.0 m³/min (579 - 1,448 cfm)
    Working Pressure 8 bar (116 psi)
    Noise Level @ 1 m 79 dB(A)
    Air Outlet DN100
    Product Code FS NXTV200
    Product Code FS NXTV 200

Enquire about this Product
